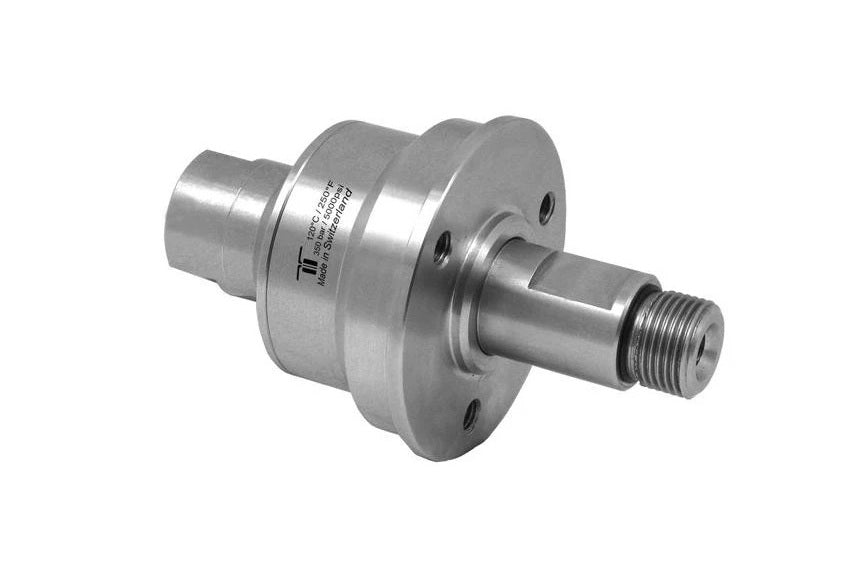

High rpm, high pressure, self rotating applications, surface cleaners, parts washers

• Complete stainless steel construction
• Seal failure warning, through weep holes
• Sealed stainless steel bearings
• Carbide seal system

Technical data

• Pressure: DYCI:5000 psi(35 MPa), DYDI: 7300 psi (50 MPa)
• Temperature: 250 °F
• RPM: max. 2’000 rpm)
• Body: stainless steel
• Inner part: Stainless steel
• Seal: carbide
• Bearing: 2x radial ball bearings, 1x thrust ball bearing
• Throughput: pH 3-12
• Medium: filtered 10 microns, compressed air (290 psi)
